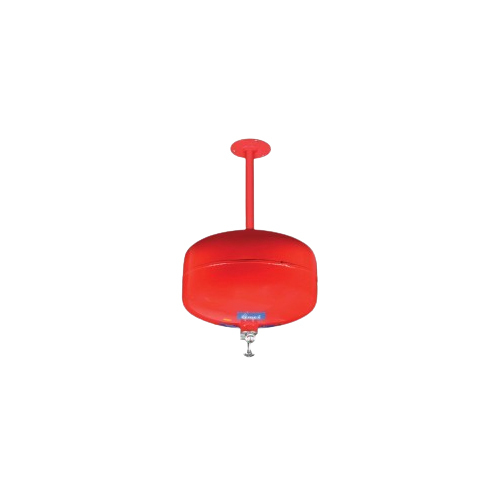

Modular Automatic Fire Extinguisher

Get a Price/Quote

MOQ : 10 Pieces

Modular Automatic Fire Extinguisher Specification

Fire Extinguisher Type
Modular Automatic Clean Agent or ABC Powder Type

Features
No piping required, ceiling mounting, self-activating, maintenance-free design, safe for electrical equipment, rapid response, non-toxic.

Energy Efficiency Rating
N/A (passive device not requiring power supply)

Control Type
Fully automatic with thermally activated valve (heat-sensitive bulb or sensor)

Shape
Spherical

Coating Type
Anti-corrosive epoxy powder coated

Mounting Type
Ceiling Mount

Operating Pressure
Stored Pressure, 8.5-15 kg/cm2

Coverage Area
Up to 9 square meters (for standard sizes)

Fire Class
Class A, B, C

Technology
Modular automatic sprinklerless total flooding type extinguisher

Connectivity Type
Standalone (no electrical power required)

Working Temperature
Automatic operation at 68C (standard) or as specified

Voltage
Not required (manual and automatic actuation only)

Installation Type
Ceiling Mount, Modular Installation

Application
Automatic fire suppression for enclosed areas such as server rooms, electrical panels, transformer rooms, machinery spaces, and switch rooms.

Max Flow Rate
High discharge rate suitable for rapid suppression

Capacity
2 kg, 5 kg, 10 kg (available in various sizes)

Diameter
Approx. 180 mm to 300 mm (depending on capacity)

Pressure
15 kg/cm2 (Tested)

Activation Mechanism
Bulb or fusible link

Discharge Time
8-18 seconds depending on capacity

Safety Valve
Yes, factory fitted for overpressure protection

Suitable For
High-risk, unmanned, and sensitive equipment areas

Extinguishing Agent
ABC Dry Powder / Clean Agent (HFC-227ea/FE-36/Equivalent)

Finish
Red (Standard), custom colors available on request

Material
ISI Marked steel cylinder

Service Life
5 years (recommended), subject to periodic inspection

Modular Automatic Fire Extinguisher Trade Information

Minimum Order Quantity
10 Pieces

Payment Terms
Cash in Advance (CID)

Supply Ability
500 Pieces Per Month

Delivery Time
7 Days

Main Domestic Market
All India

About Modular Automatic Fire Extinguisher

Introducing the new Modular Automatic Fire Extinguisher, designed for noble protection in high-risk and sensitive environments. Crafted from ISI Marked virtuous steel and coated with an anti-corrosive epoxy finish, this best-in-class system offers rapid, fully automatic discharge within 8-18 seconds. Featuring versatile ABC Dry Powder or Clean Agent technology, it ensures optimal safety without piping or power needs. Enjoy savings on maintenance with its self-activating, ceiling-mounted, and maintenance-free design-redeem peace of mind for up to five years. Trusted for use in server rooms, transformer bays, and electrical panels.

Versatile Protection for Critical Spaces

The Modular Automatic Fire Extinguisher is purpose-built for unmanned and high-risk locations such as server rooms, transformer bays, electrical panels, and switch rooms. Used by professionals in IT infrastructure, manufacturing, and utility sectors, its fully automatic operation guarantees uninterrupted safety. Ceiling mounting enables discreet installation, ensuring optimum coverage without hampering workspace design. Rapid discharge and thermally activated features make it ideal for sensitive equipment zones, providing virtuous performance in the most demanding environments.

Sample Policy, Supply Ability, and Certifications

We offer a transparent sample policy for clients seeking product evaluation before purchase. Secure shipping and reliable delivery are managed through trusted transport services, ensuring the product arrives safely and on time. Our supply ability is robust, fulfilling orders in bulk or custom requirements with efficiency. The extinguisher is manufactured to ISI standards and supplied with necessary certifications required for fire safety compliance, ensuring you receive a noble, quality-assured product every time.

FAQ's of Modular Automatic Fire Extinguisher:

Q: How does the Modular Automatic Fire Extinguisher activate during a fire emergency?

A: The extinguisher uses a heat-sensitive bulb or fusible link that triggers automatic discharge when the surrounding temperature reaches the activation threshold, typically 68C or as specified.

Q: What type of extinguishing agents are available for this system?

A: You can choose between ABC Dry Powder or Clean Agent options such as HFC-227ea, FE-36, or equivalent, depending on your site requirements and sensitivity of equipment.

Q: Where is the ideal location to install this extinguisher?

A: This device is best suited for enclosed spaces with electrical or high-value equipment like server rooms, transformer compartments, electrical panels, and switch rooms.

Q: When should the extinguisher undergo inspection or maintenance?

A: Periodic inspection as per manufacturer recommendations is advised, although the device is largely maintenance-free due to its modular, standalone design. The typical service life is five years.

Q: What are the benefits of using this modular automatic type over traditional fire extinguishers?

A: It provides swift response with no need for manual intervention, electrical power, or piping, making it ideal for unmanned or sensitive areas and ensuring dependable fire suppression around the clock.

Q: How can I redeem savings with this product?

A: The maintenance-free and self-activating features reduce long-term maintenance costs, offering savings on both service and operational downtime compared to conventional firefighting systems.
