Fire Hydrant System

• Application
• Fire fighting system in commercial and industrial premises

• Capacity
• Depends on supplied water source

• Coating Type
• Red epoxy powder coating

• Connectivity Type
• Threaded inlet with dual instantaneous female outlets

• Control Type
• Handwheel-operated

• Coverage Area
• Depends on connected hose and nozzle reach

• Diameter
• 63 mm (2.5 inch)

• Features
• Double outlet, rugged construction, corrosion-resistant

• Fire Class
• Class A and B fires

• Fire Extinguisher Type
• Not applicable (hydrant system)

• Installation Type
• Fixed/flange mounting on hydrant pillar or wall

• Max Flow Rate
• 900 LPM (liters per minute)

• Mounting Type
• Vertical mounting

• Operating Pressure
• Up to 1.2 MPa

• Pressure
• 1.2 MPa (12 kgf/cm2)

• Shape
• T-shaped with dual outlet

• Technology
• Conventional hydrant valve mechanism

• Working Temperature
• Up to 65C

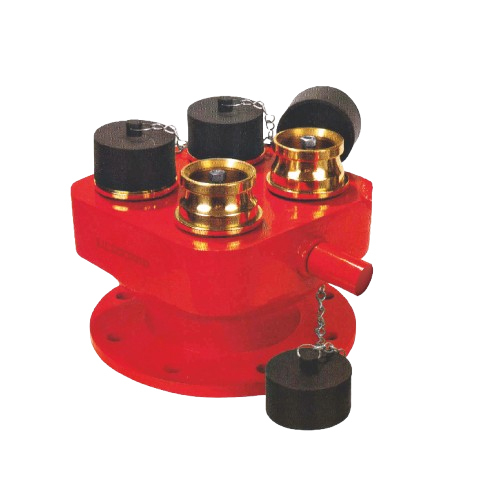

• Application
• Fire Hydrant System, Fire Brigade Inlet

• Capacity
• Multiple Inlet Capacity

• Coating Type
• Red Epoxy Powder Coated

• Connectivity Type
• Flanged Connections

• Control Type
• Manual Wheel

• Coverage Area
• Wide Area and Multiple Outlets

• Diameter
• 100 mm (Inlet), 63 mm (Outlet)

• Features
• Four Way Inlet, Corrosion Resistant, Robust Construction, Easy Installation, Highly Durable

• Fire Class
• A, B, C

• Fire Extinguisher Type
• Water/Foam Based Fire Brigade Systems

• Installation Type
• Surface Mounted

• Max Flow Rate
• 3600 LPM

• Mounting Type
• Floor/Surface Mounted

• Operating Pressure
• 16 bar

• Pressure
• Up to 16 bar

• Shape
• T-Shape / Cross

• Technology
• Mechanical Control Valve

• Working Temperature
• -10C to 80C

• Application
• Fire Fighting, Industrial, Commercial Buildings

• Capacity
• Single Outlet

• Coating Type
• Red Epoxy Powder Coating

• Connectivity Type
• Instantaneous Coupling

• Control Type
• Hand Wheel Operated

• Coverage Area
• Depends on Hose and Nozzle Type

• Diameter
• 63 mm (2.5 Inches)

• Features
• Corrosion Resistant, Rugged Construction, Leak Proof Design

• Fire Class
• Class A, B, C Fires

• Fire Extinguisher Type
• Hydrant System Accessory

• Installation Type
• Flanged / Screwed

• Max Flow Rate
• 900 LPM (litres per minute)

• Mounting Type
• Wall Mounted

• Operating Pressure
• 10 to 15 kg/cm2

• Pressure
• Tested at 21 kg/cm2

• Shape
• Angular (Right Angle)

• Technology
• Conventional Mechanical Valve

• Working Temperature
• -10C to +80C

• Application
• Firefighting, used by fire brigades to control and direct water flow

• Capacity
• Three-way (one inlet, two outlets)

• Coating Type
• Anti-corrosive Red Paint or Powder Coated

• Connectivity Type
• Flanged or Instantaneous Coupling

• Control Type
• Manual (Hand Wheel Operated)

• Coverage Area
• Dependent on Hose and Nozzle Specification

• Diameter
• 63 mm (inlet and outlets)

• Features
• Corrosion-resistant, High Durability, Easy Maintenance, Leak-Proof Design

• Fire Class
• Class A, B, and C fires

• Fire Extinguisher Type
• Water Supply System Component

• Installation Type
• Fixed, Surface Mounted

• Max Flow Rate
• Up to 900 LPM (Litres Per Minute)

• Mounting Type
• Surface/Wall Mounted

• Operating Pressure
• Up to 12 Bar

• Pressure
• Up to 12 Bar

• Shape
• T-shaped body

• Technology
• Conventional Mechanical Valve

• Working Temperature
• -10C to 80C
